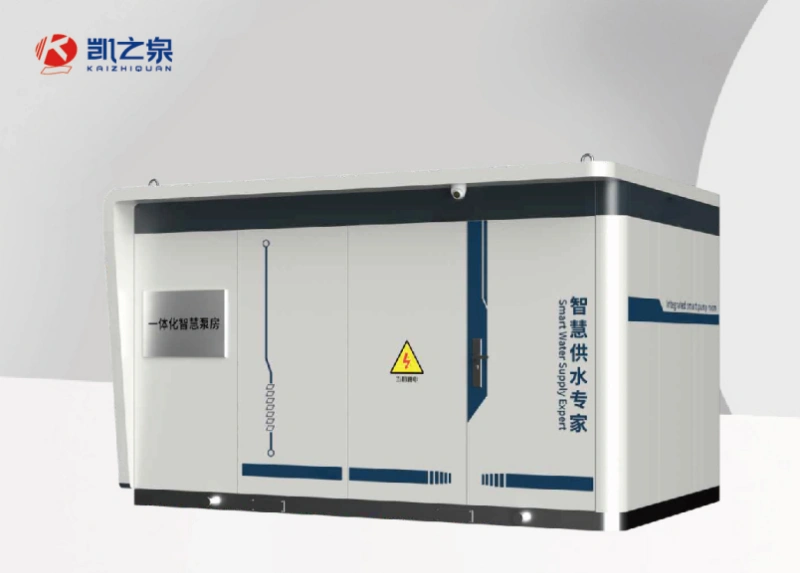

The Integrated Intelligent Pump House consists of water pumps, pipelines, valves, control systems, intelligent monitoring systems, security systems and other components. As water supply equipment for municipal water transmission and distribution, it greatly improves installation efficiency and saves working hours. Meanwhile, it features compact size, high efficiency and high intelligence level.Compared with traditional pump houses, the integrated intelligent pump house requires less civil engineering work, short manufacturing and installation cycle, lower investment, convenient installation and reliable quality. It serves as an ideal alternative to conventional pump houses.
Adopts one-to-one variable frequency control mode to reduce equipment failure rate by more than 50%. Combined with the power management module, it can collect real-time operating data of the equipment.
A safe operation mode is added to the control system. Dual controllers composed of PLC and industrial PC ensure continuous system operation.
Versatile Functions
Built-in software self-check function in the control system detects hidden system faults and potential risks, greatly lowering the failure rate.
Equipped with phase sequence protection device to secure equipment. It prevents equipment breakdown or damage caused by phase sequence changes due to various factors.
Energy Saving & Eco-friendly
The power acquisition module assists the intelligent control system in energy consumption analysis and reduces energy consumption by adjusting equipment operating status.
Signal isolators are installed in the control system to improve the stability and accuracy of signal transmission, thus reducing equipment failure rate.
Detailed Description
Product Overview
Integrated Intelligent Water Supply Pump House is an all-in-one water supply unit assembled with water pumps, pipelines, valves, control system, intelligent monitoring system and safety protection system. It adopts one-to-one variable frequency control mode, supported by dual controllers consisting of PLC and industrial computer. Built-in self-inspection function, sequence protection device, power consumption collection module and signal isolation module effectively cut down failure rate and optimize energy consumption. Compared with traditional pump houses, it requires minimal civil engineering, shortens construction period, features compact layout, easy installation and high intelligence. It serves as an ideal replacement for conventional pump houses for municipal, industrial, agricultural and domestic water supply projects.
Performance parameter
No.
Model
Flow (m³/h)
Rated Head (m)
Connection Size (DN)
Motor Power (kW)
1
CDLF2-20
2
15
25
0.37
2
CDLF2-30
2
22
25
0.37
3
CDLF2-40
2
30
25
0.55
4
CDLF2-50
2
37
25
0.55
5
CDLF2-60
2
45
25
0.75
6
CDLF2-70
2
52
25
0.75
7
CDLF2-80
2
60
25
1.1
8
CDLF2-90
2
67
25
1.1
9
CDLF2-100
2
75
25
1.1
10
CDLF2-110
2
82
25
1.1
Structural Characteristics

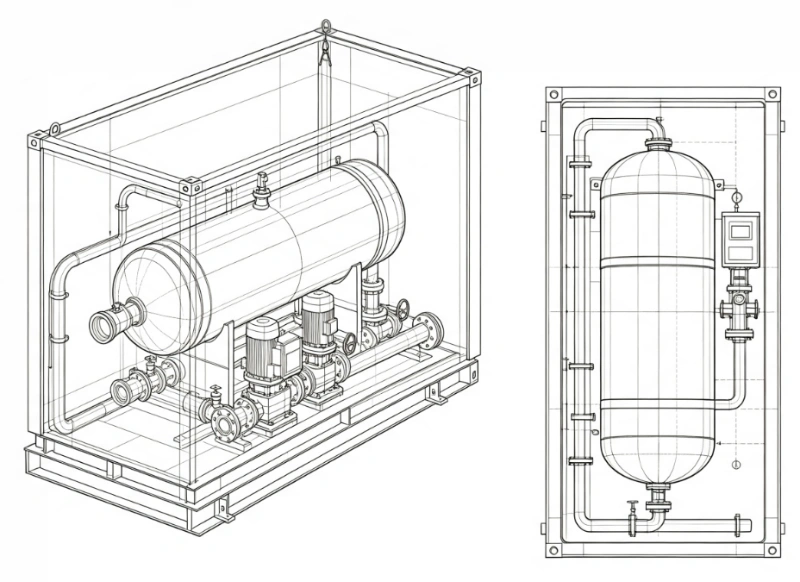

Integrated Intelligent Water Supply Pump House is a prefabricated container-style water supply unit composed of water pumps, pipelines, valves and intelligent control system. It completes assembly and testing in factory, requiring less civil work and shorter construction period compared with traditional pump rooms. Supported by PLC frequency conversion control, automatic fault diagnosis and remote monitoring functions, this equipment achieves stable constant-pressure water supply with low failure rate and excellent energy-saving performance, suitable for municipal water supply, industrial, agricultural and domestic water supply under ambient temperature of -10℃~40℃ and altitude below 1000m.
Operating Pressure-Temperature Range

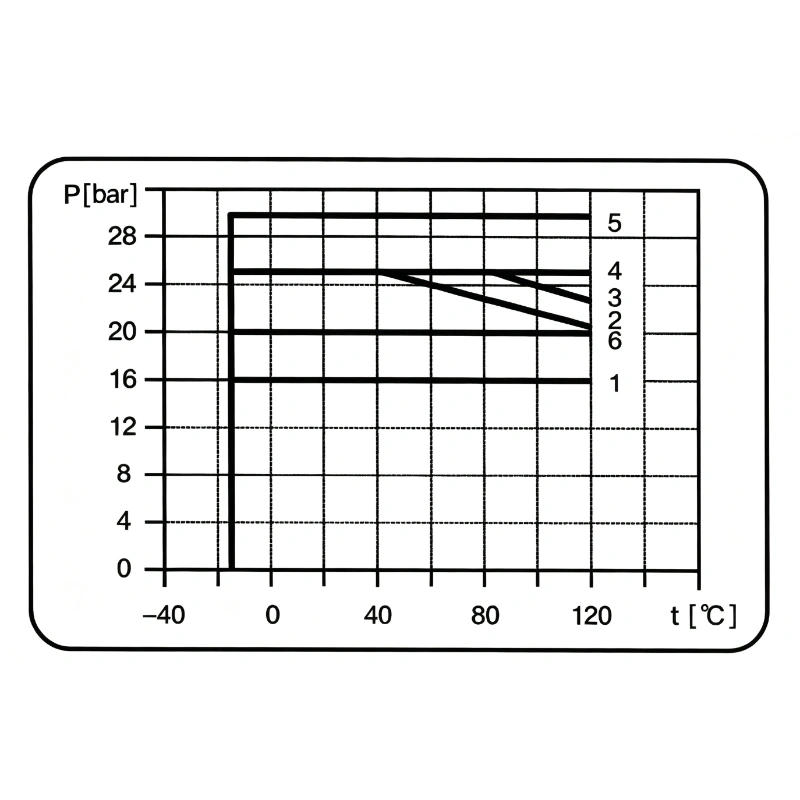

This graph shows the maximum allowable working pressure for each vessel model at different temperatures. Some models maintain stable pressure within the full temperature range, whereas others have reduced allowable pressure when temperature exceeds 40°C. Operating parameters must not exceed the curve limits to ensure safety.
Application Scope
FAQs：
1
What is the core control mode of Integrated Intelligent Water Supply Pump House?
It adopts one-to-one variable frequency control mode. Equipped with dual controllers of PLC and industrial computer, it ensures continuous and stable system operation.
2
What advantages does it have over traditional concrete pump houses?
It greatly reduces civil engineering workload, shortens construction cycle, facilitates installation, occupies smaller space and achieves higher intelligence. It can be quickly commissioned and put into service.
3
Does the unit support remote monitoring?
Yes. The intelligent monitoring module collects real-time operational data and supports remote data check, fault alarm and parameter adjustment.
