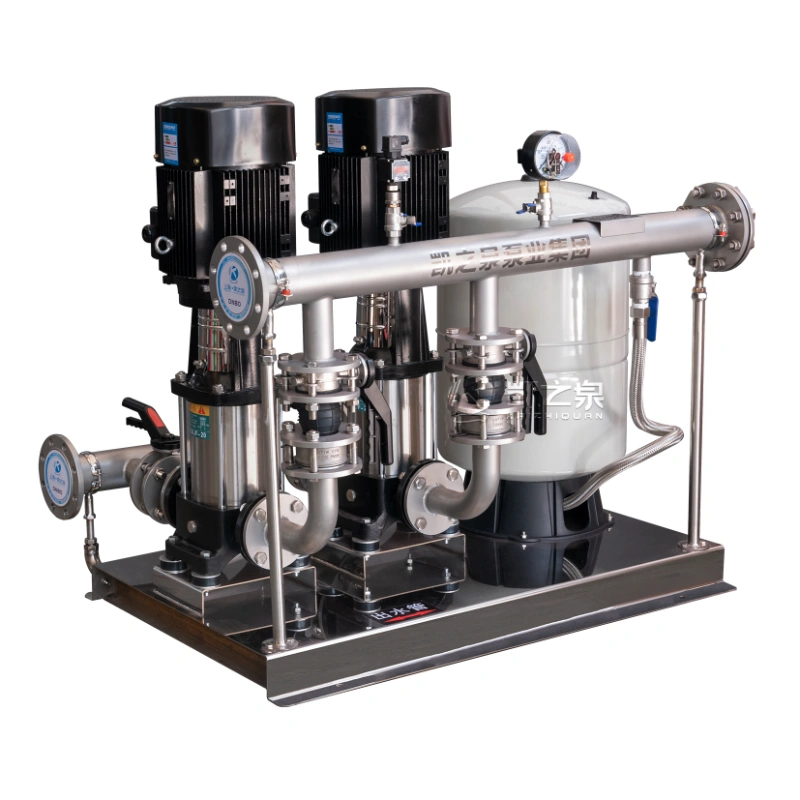

Intelligent Constant Pressure Water Supply Equipment

Intelligent Variable Frequency Constant Pressure Water Supply Equipment combines integrated hydraulic control units, booster pump sets, constant pressure tanks, intelligent control cabinets with cloud data to realize smart management.It can be directly connected to water supply pipelines without causing negative pressure to the municipal water supply network. Through the constant pressure tank, the system automatically reduces pressure at low flow and boosts pressure at high flow for energy-saving constant pressure water supply.Equipped with 5G dedicated VPN lines, it connects the cloud, control center, alarm system and mobile terminals with on-site water supply equipment, O&M teams, sensing control units and software applications. Real-time management and monitoring are available via mobile APP, smart cloud and control center, delivering safer, smarter and more convenient water supply.

Flow Range	0~84m³/h
Pressure Range	0~2.5MPa
Power Supply	380V±10%, 50Hz±5%
Relative Humidity	≤90%
Regulation Accuracy	0.01MPa
Motor Capacity	≤37kW
Temperature Range	0~+40°C
Ambient Conditions	Free of corrosive gas, oil mist and conductive dust

INQUIRE NOW

Product Advantages

Safe & Reliable

Effectively protects electronic components from foreign objects and splashing water, ensuring secure unit operation, lowering failure risks and safeguarding personnel safety.
The integrated electromechanical control cabinet is equipped with well-known brand surge protectors to prevent equipment damage caused by lightning strikes.
Intelligent System

Software enables real-time communication among after-sales, production and R&D teams for an intelligent, safe and user-friendly experience.
Main components undergo sandblasting treatment and are carefully packed with bubble plastic before shipment.
Enhanced Performance

Specially treated surface coating improves corrosion resistance, extends service life and maintains optimal operating conditions over long-term operation.
Adopting a unique base structure made of high-performance materials, it delivers superior corrosion resistance and higher mounting stability.

Detailed Description

Product Overview

This equipment adopts an integrated mechatronic structure with reliable performance and high energy efficiency. It effectively avoids secondary water pollution, buffers water hammer impact and extends the service life of the whole system. With variable frequency control technology, it realizes automatic constant-pressure water supply. Widely applied in domestic water supply for residential buildings, heating systems, garden landscapes, musical fountains and other cold & hot water supply occasions.

Performance parameter

No.	Model	Flow (m³/h)	Rated Head (m)	Connection Size (DN)	Motor Power (kW)
1	CDLF2-20	2	15	25	0.37
2	CDLF2-30	2	22	25	0.37
3	CDLF2-40	2	30	25	0.55
4	CDLF2-50	2	37	25	0.55
5	CDLF2-60	2	45	25	0.75
6	CDLF2-70	2	52	25	0.75
7	CDLF2-80	2	60	25	1.1
8	CDLF2-90	2	67	25	1.1
9	CDLF2-100	2	75	25	1.1
10	CDLF2-110	2	82	25	1.1

Structural Characteristics

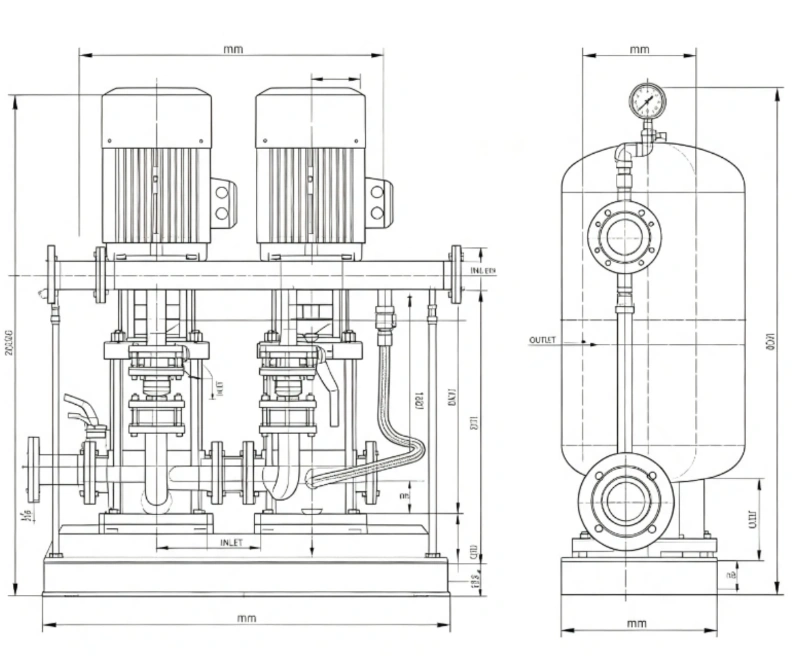

This drawing is the structural dimension sectional view of the Intelligent Constant Pressure Water Supply Equipment. It clearly shows the standard layout of the complete unit. The equipment is equipped with two vertical multi-stage centrifugal pumps working in standby mode. It is fitted with an inlet collecting main, outlet pressure stabilizing pipeline and supporting valve assemblies. A pressure stabilizing tank is arranged on the right side, equipped with a pressure gauge to monitor pipeline pressure in real time. The whole set integrates pump units, pipeline valves and pressure stabilizing buffer components on an integrated base. During operation, the frequency conversion system automatically adjusts pump speed according to pipeline pressure. The pressure tank buffers water pressure fluctuation and reduces frequent pump start-stop, realizing all-day constant-pressure water supply. Adopting modular integrated design, it features compact structure and easy installation, suitable for water supply in buildings, parks, agriculture and industrial fields.

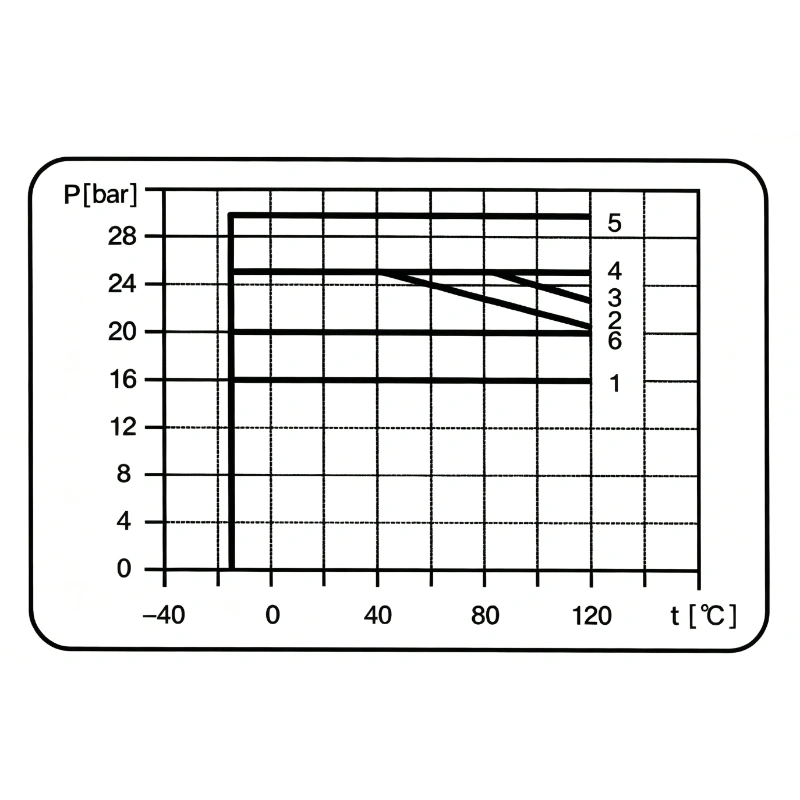

Operating Pressure-Temperature Range

Application Scope

FAQs：

1
What is the function of the pressure tank shown in the drawing?

The pressure stabilizing tank stores pressurized water. It buffers sudden pipeline pressure changes, avoids frequent start and stop of water pumps, saves energy consumption, and maintains stable outlet water pressure during short-time water consumption peaks.
2
Why does this equipment adopt two vertical pumps (one working, one standby)?

Dual pump configuration ensures continuous water supply. If the running pump fails, the standby pump will automatically switch on. It meets uninterrupted water demand of commercial and residential buildings and reduces the risk of water cut-off.
3
Can this constant pressure water supply unit adjust the output water pressure freely?

Yes. Supported by variable frequency control system, users can set target pressure within the equipment pressure range 0~2.5MPa. The system automatically adjusts pump operating speed to keep stable pressure as water flow changes.
