Non-Clogging Submersible Sewage Pump

Industrial Heavy-Duty Non-Clogging High-Efficiency Large-Capacity WQ Submersible Sewage Pump

The non-clogging submersible sewage pump is a unit in which the pump and motor are integrated and operate while fully submerged in the liquid. Compared to conventional horizontal or vertical sewage pumps, this type features a compact structure and a small footprint. Installation and maintenance are convenient; large-scale models are typically equipped with automatic coupling devices that facilitate automatic installation, making the process highly efficient. They offer long continuous operating times. Because the pump and motor share a common shaft—resulting in a shorter shaft and lighter rotating components—the radial load on the bearings is relatively low, leading to a significantly longer service life than that of standard pumps. Issues such as cavitation damage and the need for priming are eliminated; the latter, in particular, offers great convenience for operators. These pumps operate with low vibration and noise, exhibit minimal motor temperature rise, and cause no environmental pollution.

Flow range 6-800m³/h
Head range 14-80m
Ambient temperature ≤50℃
Medium temperature ≤80℃
Medium specific weight ≤1050kg/m³
Total length of suction pipe ≤10m
INQUIRE NOW
WHATSAPP

Share:

Product Advantages

  • Efficient Operation

    · Features a unique single- or dual-vane impeller design capable of effectively passing fibrous materials up to five times the pump inlet diameter and solid particles with diameters up to approximately 50% of the inlet diameter.
    · Utilizes a new type of hard, wear-resistant tungsten carbide material for the mechanical seal; the seal configuration has been upgraded to a double-face design, enabling safe, continuous operation for over 8,000 hours.

  • Safe and Reliable

    · Equipped with a high-precision, anti-interference water leakage detection sensor in the seal oil chamber and thermal sensing elements embedded in the stator windings, ensuring comprehensive protection for the pump motor.
    · Can be paired with a fully automatic safety protection control cabinet to provide complete protection against water leakage, electrical leakage, and motor overload, thereby enhancing product safety and reliability.

  • Intelligent Control

    · The float switch automatically controls the starting and stopping of the pump based on changes in liquid level, eliminating the need for manual supervision and offering great convenience in use.
    · It can operate across the entire head range while ensuring the motor does not become overloaded.

Detailed Description

Product Description

The WQ series non-clogging submersible sewage pump is a new generation of pumping equipment developed by integrating advanced foreign technology with the specific operational characteristics of domestic pumps. It features significant energy efficiency, resistance to entanglement and clogging, as well as capabilities for automatic installation and control. It is exceptionally effective at handling media containing solid particles and long-fiber debris.
This series utilizes a unique impeller design and a new type of mechanical seal, enabling the efficient transport of fluids containing solids and long fibers. Unlike traditional designs, the impeller employs a single- or dual-channel configuration—resembling a curved pipe with a uniform cross-section—which ensures excellent flow characteristics. When paired with a well-designed volute casing, this results in high operational efficiency; furthermore, the impeller undergoes dynamic and static balancing to ensure vibration-free operation.

Performance Parameters

80WQ15-30-2.2

80: Discharge diameter(mm)

WQ: Submersible non-clogging sewage pump

15: Flow rate(m³/h)

30: Head(m)

2.2: Motor power(kW)

ModelBore Size
(mm)		Rated Flow Rate
(m³/h)		Head
(m)		Motor Power
(kW)		Rotational Speed
(r/min)		Efficiency
(%)
25-8-22-1.1258221.1282538.5
32-12-15-1.13212151.1282540
40-15-15-1.54015151.5284045.1
40-15-30-2.24015302.2284048
50-20-7-0.75502070.75139054
50-10-10-0.755010100.75139056
50-20-15-1.55020151.5284055
50-15-25-2.25015252.2284056
50-18-30-35018303288058
50-25-32-5.55025325.5290053

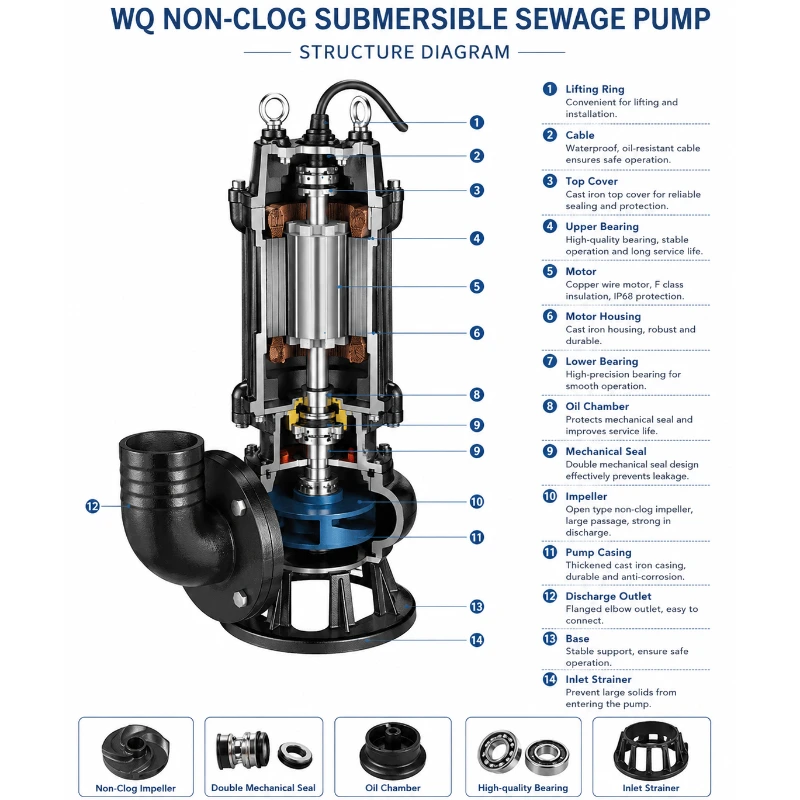

Product Structure Diagram

Product Use

Suitable for transporting sewage and waste containing particles in industries such as chemicals, petroleum, pharmaceuticals, mining, papermaking, cement manufacturing, steelmaking, power generation, and coal processing, as well as in municipal sewage treatment plant drainage systems, municipal engineering projects, and construction sites.

FAQs：

  • 1

    What liquids can the WQ Non-Clog Sewage Pump handle?

    The WQ Non-Clog Sewage Pump is designed to transfer wastewater, sewage, sludge, rainwater, industrial wastewater, and other liquids containing solid particles or short fibers. It is not recommended for highly corrosive chemicals unless a suitable material such as stainless steel is selected.
  • 2

    Can the pump handle wastewater containing long fibers?

    Yes. The wide-channel impeller is designed to reduce clogging caused by fibers and suspended solids. For wastewater containing a large amount of long fibers, we can also recommend cutter-type or vortex impeller models.
  • 3

    Is the pump suitable for continuous operation?

    Yes. The motor is designed for continuous-duty operation (S1) under normal working conditions. Proper installation and operation within the recommended performance range will ensure reliable long-term service.
