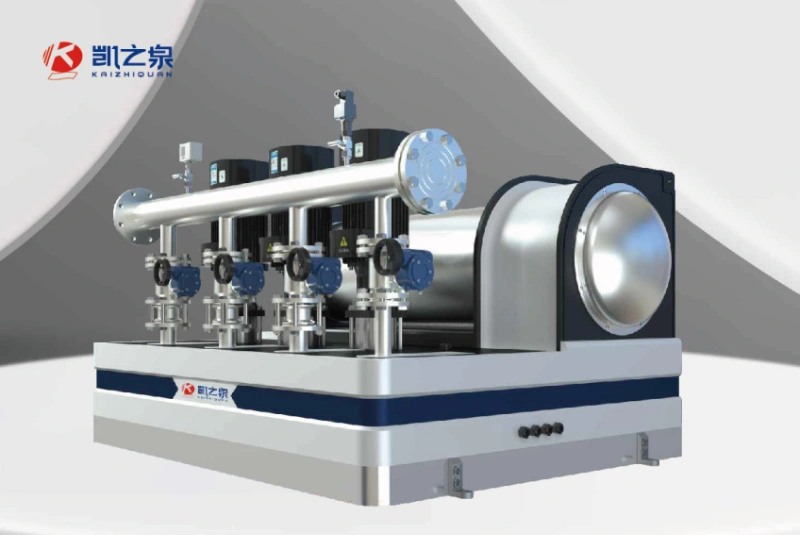

Single Chamber Intelligent Water Supply System integrates comprehensive hydraulic control unit, booster pump set, constant-pressure tank, intelligent control cabinet and cloud data to realize intelligent management.It can be directly connected to the municipal water supply pipe network without generating negative pressure. The system autonomously performs pressure reduction for low flow and pressure boosting for high flow via the constant-pressure tank to achieve energy-saving constant-pressure water supply.Adopting dedicated 5G VPN lines, it seamlessly connects the cloud platform, control center, alarm system, mobile terminals with physical water supply equipment, operation & maintenance teams, sensors, controllers and software applications.Real-time management and monitoring are available via mobile devices, intelligent cloud and control center, delivering safer, smarter and more convenient water supply experience.
Intelligent control for autonomous pressure boosting based on terminal data. Equipped with branded variable frequency pump sets to optimize energy consumption for energy conservation and environmental protection.
Innovative technologies including pump flow grading, intelligent frequency-section selection system and low-flow energy saving.
Versatile Functions
Branded inverters adopted for the whole series (one-to-one VFD control, dual controllers, automatic software inspection, energy consumption collection), with modular design, phase sequence protection and anti-electromagnetic interference.
Services based on regional municipal water pipe network survey and data, centered on user demands.
Stable Operation
The intelligent control cabinet reaches IP54 protection class with lightning protection. It adopts single-sided welding & double-sided forming welding technology.
Fully automatic streamlined production; big data supports predictive maintenance effectively.
Detailed Description
Product Overview
Single Chamber Intelligent Water Supply System integrates hydraulic control unit, pump sets, pressure stabilizing tank and intelligent control cabinet, combined with cloud data intelligent management technology. It can be directly connected to municipal water pipe networks without generating negative pressure. The system independently realizes low-flow pressure reduction and large-flow pressure compensation to achieve energy-saving constant pressure water supply. Supported by 5G network and VPN remote access, real-time monitoring and management can be realized via mobile terminals, cloud platform and control center. With flow grading intelligent frequency conversion, complete electrical protection and IP54 control cabinet, it operates stably and efficiently, widely used in residential water supply, public buildings, commercial buildings, agricultural irrigation and industrial water supply.
Performance parameter
No.
Model
Flow (m³/h)
Rated Head (m)
Connection Size (DN)
Motor Power (kW)
1
CDLF2-20
2
15
25
0.37
2
CDLF2-30
2
22
25
0.37
3
CDLF2-40
2
30
25
0.55
4
CDLF2-50
2
37
25
0.55
5
CDLF2-60
2
45
25
0.75
6
CDLF2-70
2
52
25
0.75
7
CDLF2-80
2
60
25
1.1
8
CDLF2-90
2
67
25
1.1
9
CDLF2-100
2
75
25
1.1
10
CDLF2-110
2
82
25
1.1
Structural Characteristics

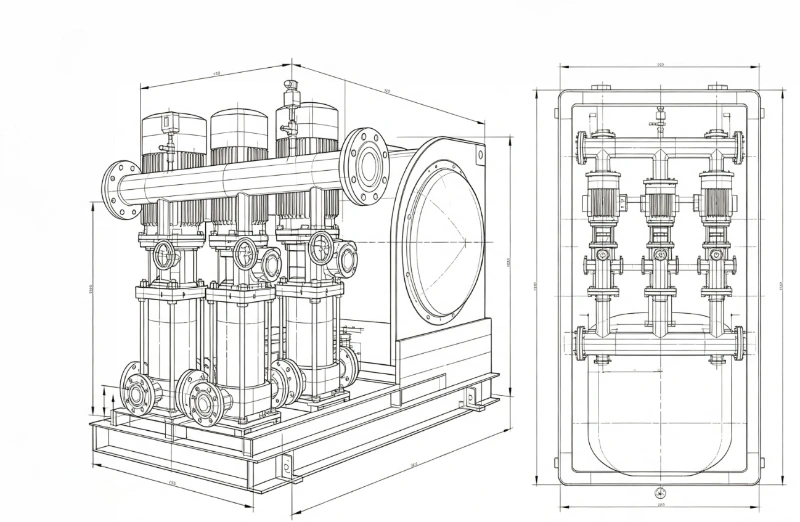

Single Chamber Intelligent Water Supply System is composed of steady flow tank, vertical multistage pump set, pipelines, valves, pressure sensors, variable frequency control cabinet and integrated base. The tank prevents negative pressure for municipal water supply. The variable-frequency pumps maintain stable water pressure with high efficiency. The IP54 control cabinet supports 5G remote monitoring. Pre-assembled compact structure enables quick field installation for residential, commercial, agricultural and industrial water supply
Operating Pressure-Temperature Range

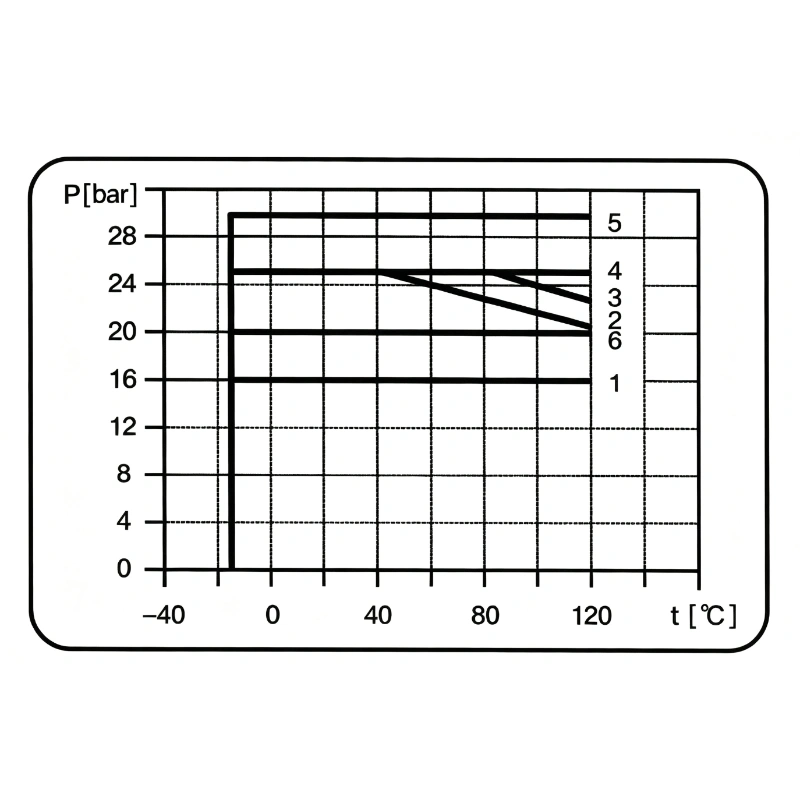

This diagram illustrates the maximum allowable working pressure of pressure vessels equipped on the Single Chamber Intelligent Water Supply System within the temperature range of -40℃ to 120℃. Models 1, 5 and 6 maintain constant allowable pressure throughout the whole temperature range. For models 2, 3 and 4, the allowable working pressure begins to drop once temperature exceeds 40℃. Actual operating pressure and temperature must stay below the corresponding curve to ensure safe equipment operation.
Application Scope
FAQs：
1
Will Single Chamber Intelligent Water Supply System create negative pressure on municipal water pipelines?
No. The system adopts single-chamber integrated structure and dedicated hydraulic control technology. It connects directly to municipal water supply networks and will not produce negative pressure, fully complying with urban water supply operation standards.
2
What are the energy-saving features of Single Chamber Intelligent Water Supply System?
It supports flow grading and low-flow energy-saving control. The system automatically switches operating modes according to actual water consumption. It optimizes pump operating status by frequency conversion, effectively reducing power consumption under low water demand conditions.
3
Can the equipment realize remote monitoring?
Yes. The system supports 5G & VPN network connection. Users can remotely view operating data, receive fault alarms and perform monitoring management anytime through mobile phones, cloud platform and central control terminal.
