This single-stage single-suction vertical pipeline centrifugal pump is designed to deliver clean water free of solid particles and liquids with physical and chemical properties similar to water. Derivative models are available for hot water, high-temperature medium, chemical fluid and oil transportation based on different operating temperatures and media.It features high efficiency & energy saving, low noise and stable performance, complying with national machinery industry standard JB/T53058-1993 and manufactured in accordance with ISO 2858 standards.
Compact design with small footprint for easy installation, saving space and costs.
Stable operation, low noise, slight vibration and long service life.
Eco-friendly & Corrosion Resistant
Pump casing made of high-quality carbon structural steel or stainless steel, featuring high strength and corrosion resistance.
Shaft and bearings adopt premium carbon structural steel or stainless steel to guarantee stable and durable pump performance.
Easy Maintenance
Simple servicing; wearing parts can be replaced without pump disassembly to cut maintenance costs.
Multiple materials and specifications optional to match diverse working conditions and application demands.
Detailed Description

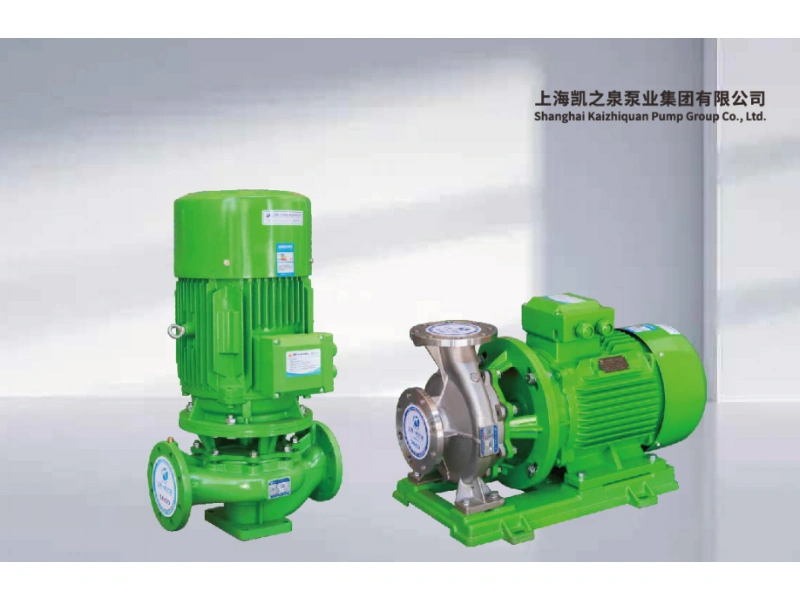

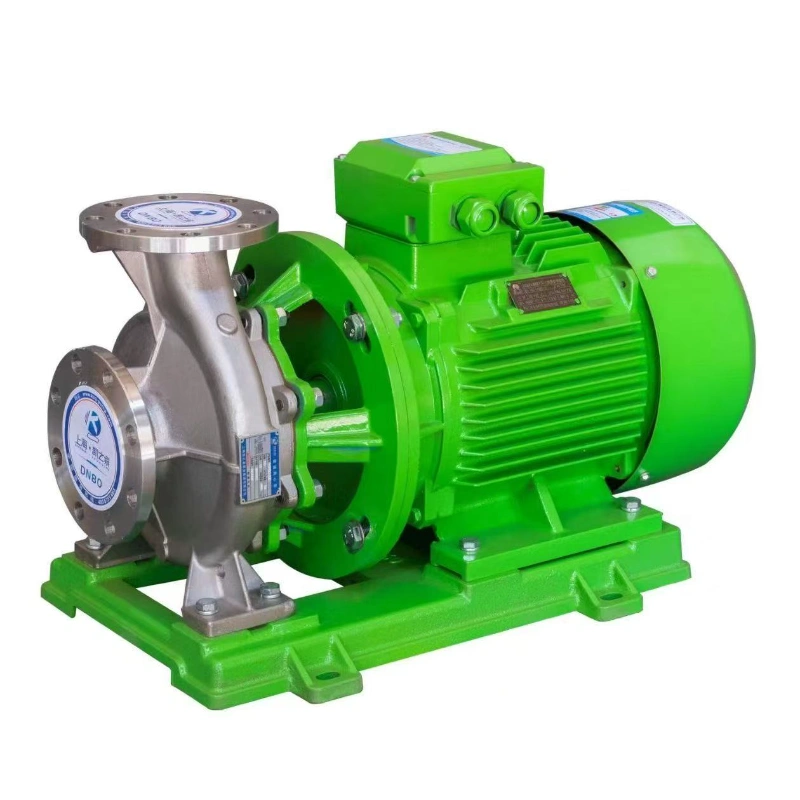

Product Overview
W series horizontal centrifugal pumps are single-stage single-suction pumps, designed to transfer clean water free of solid particles and liquids with physical and chemical properties similar to water. Multiple variants are developed for different medium temperatures and working conditions, including W clean water pump, WR hot water pump, WH chemical pump, WB pipeline oil pump and WD low-speed pump, suitable for clean water, high-temperature hot water, corrosive chemical liquid, gasoline, diesel and other media.Featuring compact structure, stable operation, low vibration and noise, the pump adopts hard alloy sealing to eliminate leakage. It allows flexible adjustment of outlet direction for convenient pipeline arrangement and easy maintenance. Manufactured in accordance with JB/T53058-1993 standard and ISO2858 international standard, the pumps are widely used in municipal water supply, building water boosting, heating & refrigeration circulation, metallurgy, chemical industry, food & pharmaceutical and oil transportation industries.
Performance parameter
No.
Model
Flow Q (m³/h)
Head (m)
Efficiency (%)
Speed (r/min)
Motor Power (kW)
Required NPSH (NPSH)r
1
25-125
2.8 4 5.2
20.6 20 18
28 36 35
2900
0.75
2.3
2
25-125A
2.5 3.6 4.6
17 16 14.4
35
2900
0.75
2.3
3
25-160
2,8 4 5.2
33 32 30
24 32 33
2900
1.5
2.3
4
25-160A
2.6 3.7 4.9
28.5 28 26
22 31 29
2900
1.1
2.3
5
32-100
4.5
12.5
44
2900
0.75
2.0
6
32-100(1)
3.75 5.3 8.3
13.2 12.5 11.3
48 54 53
2900
0.75
2.0
7
32-125
3.5 5 6.5
22 20 18
40 44 42
2900
0.75
2.3
8
32-125A
3.1 4.5 5.8
17.6 16 14.4
43
2900
0.75
2.3
9
32-160
5
32
44
2900
1.5
2.3
10
32-160A
4
25
34
2900
1.1
2.0

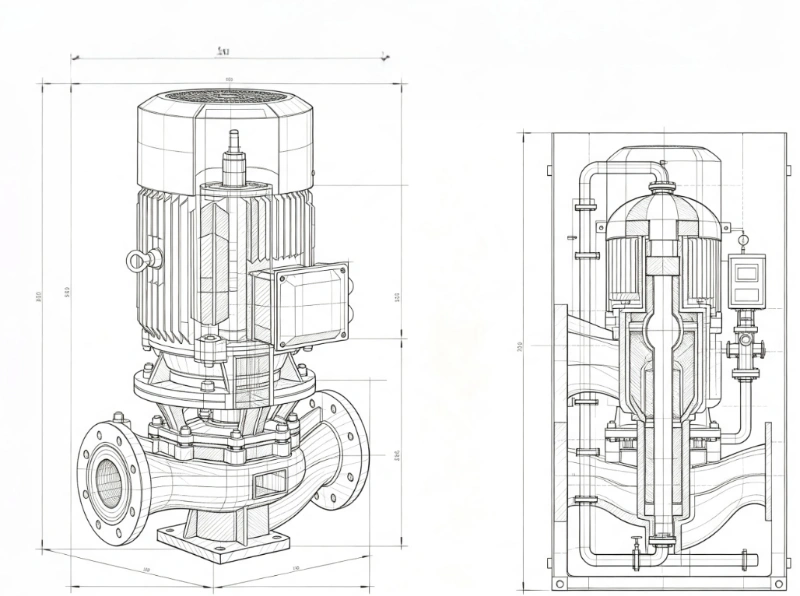

Structural characteristics
Vertical (Horizontal) Pipeline Centrifugal Pump Single-stage circulating pump fitted with standard motor and mechanical seal. Adopt pull-out structure for easy maintenance without pipeline disassembly. Available in carbon steel and stainless steel materials. Compact structure, stable running, low noise. Widely applied in building water supply, industrial circulation, boiler water supply and environmental water treatment.

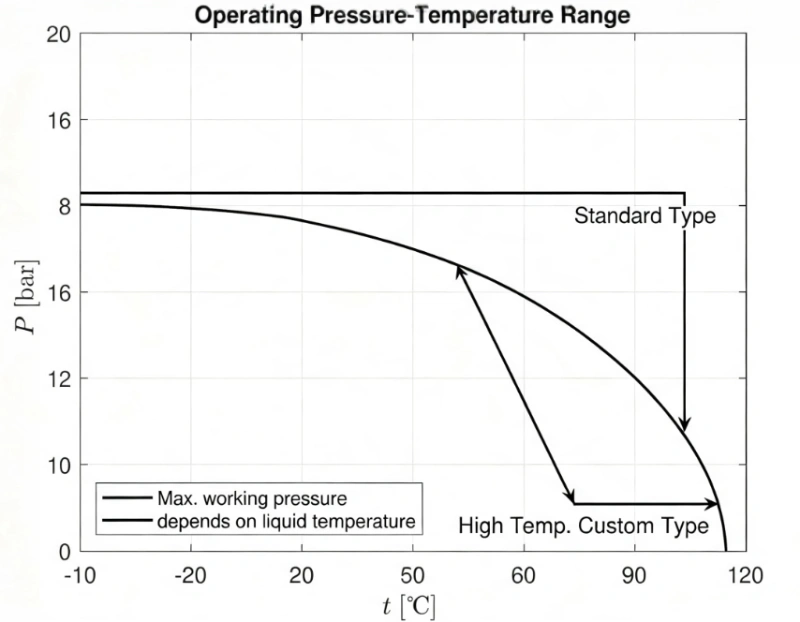

Operating Pressure-Temperature Range
Operating Pressure-Temperature Range These curves show the maximum permissible working pressure at various liquid temperatures. Standard model applies to -10°C ~ 80°C medium, and customized high-temperature model supports medium temperature up to 120°C. Operating pressure should not exceed the curve limit.
Application Scope
FAQs：
1
What are the main differences among W, WR, WH, WB and WD models?
Model W is horizontal clean water pump for normal-temperature clean water; WR is hot water pump for high-temperature hot water circulation; WH chemical pump for corrosive liquid; WB pipeline oil pump for gasoline, diesel and similar oil products; WD low-speed pump for sites requiring low noise. They differ in applicable media and temperature range. Please confirm medium and temperature before selection.
2
What is the allowable temperature range of the conveyed medium?
Medium temperature for W clean water pump ≤80℃; WR, WH and WD models: -20℃~120℃; WB oil pump: -20℃~120℃. Long-term operation beyond the temperature range is forbidden to prevent premature seal failure.
3
Is daily maintenance complicated? Can we replace spare parts without dismantling the whole pump?
Maintenance is convenient. Wearing parts such as mechanical seals and bearings can be replaced without full pump disassembly, reducing maintenance time and cost. Pump casing material can be carbon steel or stainless steel to meet different anti-corrosion requirements.
