Drawing upon years of manufacturing experience and utilizing specialized hydraulic and structural designs, our company has developed this vertical multistage fire-fighting pump. Its flow and pressure ratings make it more suitable for building fire-suppression water supply systems than standard centrifugal clean-water pumps, and it features a flat flow-pressure characteristic curve free of "humps."
| Flow rate range | 1-40L/s |
| Power range | 0.75~160kW |
| Head range | 30~200m |
| Rated speed | 2900r/min, 2850r/min |
· When viewed from the motor end, the GDL-type vertical multistage fire pump rotates in a clockwise direction.
· The impeller utilizes a hydraulic balancing method to counteract axial forces; a guide bearing is located at the lower end of the pump, and the shaft is connected to the motor shaft via a clamp-type coupling for power transmission, while the outer casing is made of stainless steel.
· It features a vertical, multistage, segmental structure; the inlet and outlet flanges lie on the same horizontal axis and share the same nominal diameter, facilitating pipeline connection and making installation and removal extremely convenient.
· There is no need to dismantle the piping; simply remove the pump cover nuts to extract the motor and drive assembly for maintenance.
· The shaft seal utilizes a cemented carbide mechanical seal, ensuring zero leakage and no shaft wear, thereby maintaining a clean working environment.
· The impeller and rotating friction components are made of alloy; they are corrosion-resistant and rust-proof, preventing the formation of rusty water that could clog fire-fighting equipment such as sprinklers, thereby extending service life.
Detailed Description
The XBD Horizontal Multistage Fire Pump is a high-performance centrifugal fire pump designed to provide stable, high-pressure water supply for fire protection systems. Featuring a multistage impeller design, the XBD series delivers higher heads with excellent hydraulic efficiency, making it ideal for high-rise buildings, industrial facilities, warehouses, municipal fire systems, and infrastructure projects.
Manufactured with premium materials and advanced production technology, our XBD multistage fire pumps offer reliable operation, low maintenance, and long service life. They are widely exported to Southeast Asia, Africa, and the Middle East, meeting the demands of EPC contractors, distributors, and government fire protection projects.
XBD5.0/20G(W)-CDL、GDL
XBD: Motor-driven fire pump
5.0: Pressure（1/10mPa）
20: Rated flow
G(W): In-line
CDL、GDL: Kaizhiquan multistage pump
| Model | Required power (kW) | Rated speed of pump unit (r/min) | Flow rate (L/S) | Head (M) |
|---|---|---|---|---|
| XBD16.0/5W-CDL | 15 | 2850 | 5L/S | 160 |
| XBD15.0/5W-CDL | 15 | 2850 | 5L/S | 150 |
| XBD14.0/5W-CDL | 15 | 2850 | 5L/S | 140 |
| XBD13.0/5W-CDL | 11 | 2850 | 5L/S | 130 |
| XBD12.0/5W-CDL | 11 | 2850 | 5L/S | 120 |
| XBD11.0/5W-CDL | 11 | 2850 | 5L/S | 110 |
| XBD10.0/5W-CDL | 11 | 2850 | 5L/S | 100 |
| XBD9.0/5W-CDL | 7.5 | 2850 | 5L/S | 90 |
| XBD8.0/5W-CDL | 7.5 | 2850 | 5L/S | 80 |
| XBD7.0/5W-CDL | 7.5 | 2850 | 5L/S | 70 |

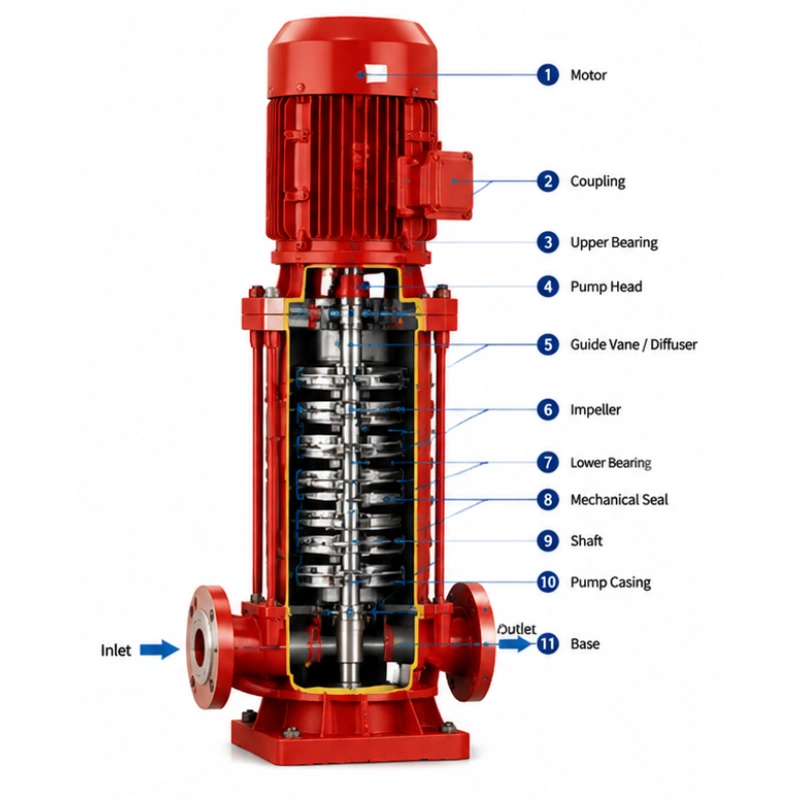

Main Components
1.Motor
High-efficiency motor provides powerful and stable driving force.
2.Pump Head
Connects multiple stages and ensures high-pressure output.
3.Impeller
Multi-stage impellers increase water pressure step by step.
4.Guide Vane
Optimizes water flow and improves hydraulic efficiency.
5.Mechanical Seal
Prevents leakage and ensures reliable operation.
6.Pump Casing
High-strength casing withstands high pressure operation.
7.Shaft
High-quality stainless steel shaft ensures stable rotation.
High-Rise Buildings
Used for high-pressure fire hydrant and sprinkler systems.
Commercial Complexes
Provides reliable fire water supply.
Industrial Facilities
Suitable for large-scale fire protection systems.
Public Buildings
Ensures emergency fire protection.
