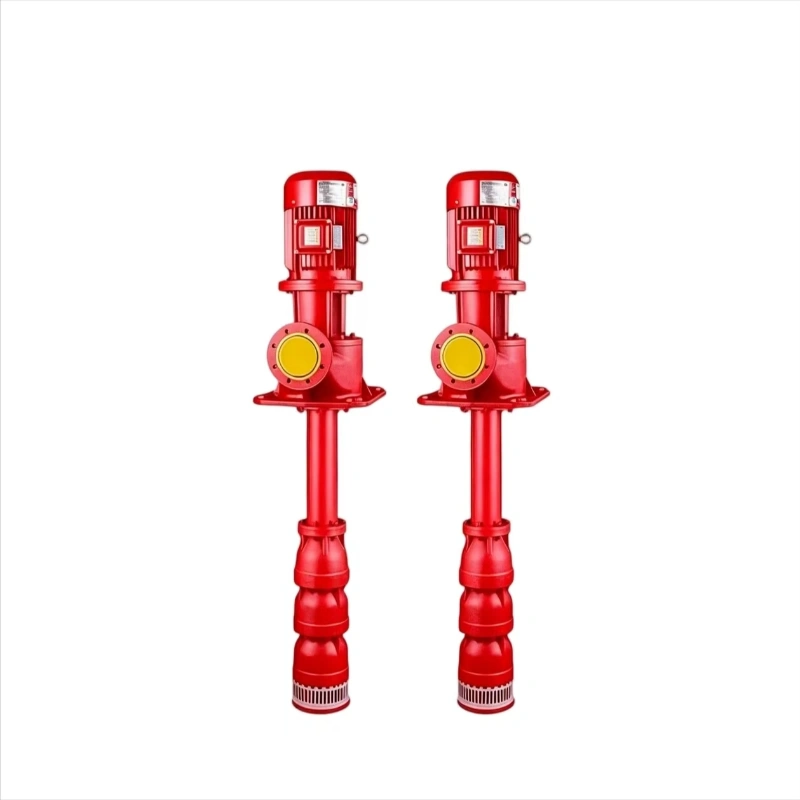

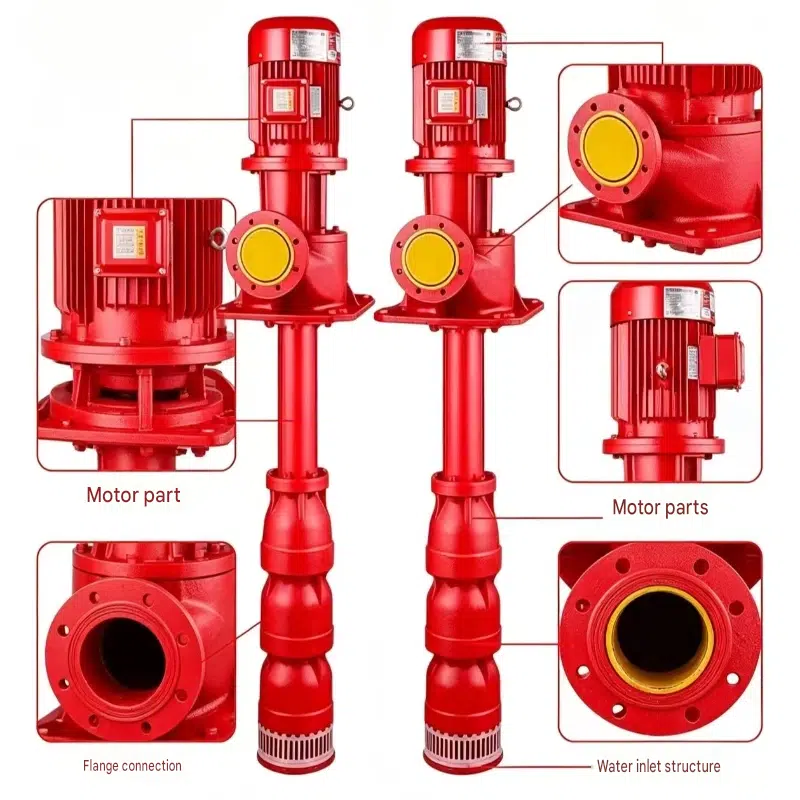

The long-shaft fire pump consists of multiple centrifugal impellers, diffuser casings, a discharge column, a drive shaft, a pump base, an electric motor, and other components. The pump base and motor are positioned above the water reservoir, and power from the motor is transmitted to the impeller shaft via a drive shaft concentric with the discharge column, thereby generating flow and pressure. The product has been tested by the China National Fire Equipment Quality Supervision and Testing Center and has obtained the fire product certification.
This vertical multistage water intake unit features a compact footprint and allows its working components to extend to depths exceeding 100 meters to extract fluid media; it supports various drive configurations.
High-efficiency and wear-resistant
The impeller is made of stainless steel and features a streamlined blade design; as water flows through the impeller, it generates an efficient vortex, thereby increasing water flow rate and pressure.
The bearing and mechanical seal components are made of high-strength materials, offering excellent wear and corrosion resistance, which ensures stable, long-term operation.
Easy to maintain and repair
The motor and pump shafts can be separated; maintenance requires removing only the pump body—not the motor—which greatly simplifies the maintenance process.
Installation can be carried out according to actual site conditions to ensure the normal operation of the pump.
Detailed Description
Product Description
The XBD Vertical Long Shaft Fire Pump is a high-performance fire protection pump designed to draw water directly from deep wells, rivers, lakes, reservoirs, and underground water tanks. It provides a stable and reliable water supply for firefighting systems where the water source is located below ground level.
Built with advanced hydraulic technology and high-quality materials, the XBD series delivers excellent efficiency, low maintenance costs, and long-term reliability, making it the preferred solution for industrial, commercial, municipal, and infrastructure fire protection projects across Southeast Asia, Africa, and the Middle East.
Performance Parameters
XBD6.0/5-GJ-SJ
XBD: Fire pump set code
6.0: Pressure
5: Flow rate
GJ: Deep-well pump type
SJ: Kaizhiquan Pump Industry
Model
Power (kw)
Rated speed (r/min)
Flow rate (L/s)
Head (m)
XBD9.6/100GJ-SJ
200
2900
100
96
XBD9.0/100GJ-SJ
160
2900
100
90
XBD8.0/100GJ-SJ
160
2900
100
80
XBD7.0/100GJ-SJ
132
2900
100
70
XBD6.0/100GJ-SJ
110
2900
100
60
XBD5.0/100GJ-SJ
110
2900
100
50
XBD10.0/90GJ-SJ
160
2900
90
100
XBD9.0/90GJ-SJ
132
2900
90
90
XBD8.0/90GJ-SJ
132
2900
90
80
XBD7.0/90GJ-SJ
110
2900
90
70

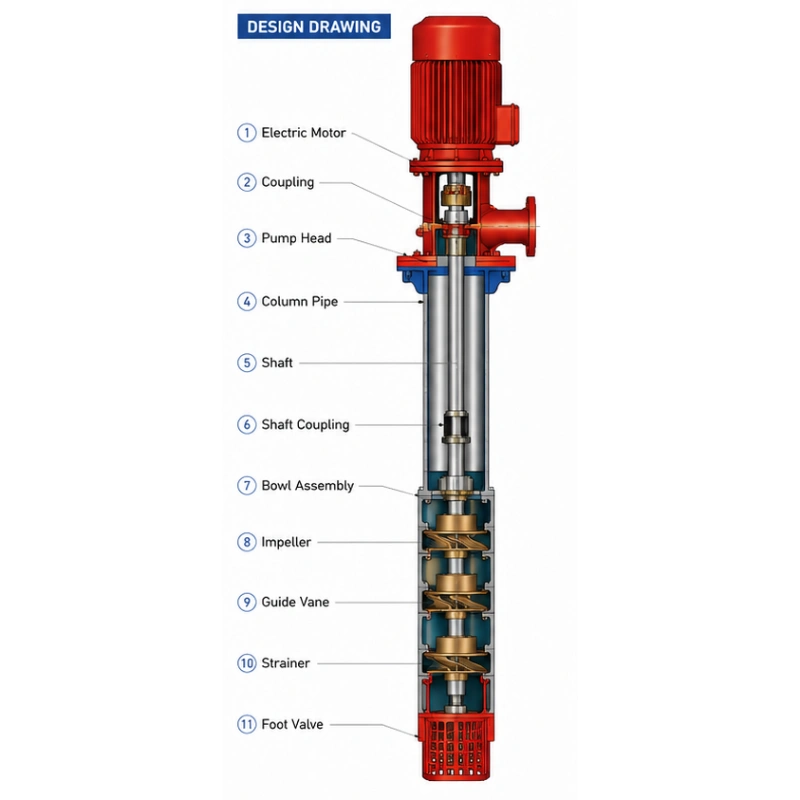

Product Structure Diagram
Product Features：
Reliable Fire Protection Performance
· Stable water flow during emergency operation
· High-pressure water delivery
· Continuous and dependable performance
· Quick response for firefighting systems
Designed for Deep Water Sources
Suitable for:
· Deep wells
· Rivers
· Lakes
· Reservoirs
· Underground water tanks
· Open water sources
High Efficiency & Energy Saving
· Optimized hydraulic design
· High-efficiency impellers
· Reduced power consumption
· Lower operating costs
Strong & Durable Construction
· Heavy-duty pump shaft
· Corrosion-resistant materials
· Long service life
· Reliable operation under harsh environments
Product Application Areas
FAQs：
1
What water sources are suitable for the XBD Long Shaft Fire Pump?
It is designed for deep wells, reservoirs, lakes, rivers, underground tanks, and other deep water sources.
2
Can you customize the pump according to our project?
Yes. We provide customized flow rate, head, motor power, materials, voltage, frequency, and installation dimensions.
3
Which standards does the pump comply with?
Our pumps can be manufactured to comply with international and project-specific fire protection requirements according to customer needs.
