ZW(L) Fire Pressurizing And Stabilizing Equipment

ZW(L) Fire Pressurizing And Stabilizing Equipment

The ZW(L) domestic (and fire-fighting) emergency pressure-boosting and stabilizing system ensures that the most hydraulically remote point of the fire water supply piping network consistently maintains the required fire-fighting pressure. It utilizes a 30-second supply of fire-fighting water—constantly stored within the pneumatic water tank—to provide the necessary water for sprinkler systems prior to the fire pump becoming fully operational. The system controls pump operation based on preset pressure parameters within the pneumatic tank, thereby achieving the functions of pressure boosting and stabilization.

Flow rate range 1-5L/s
Power range 0.75-18.5kW
Head range 30-150m
Rated speed 2900r/min
INQUIRE NOW
WHATSAPP

Share:

Product Advantages

  • Fully functional

    · Features multiple operating modes—including automatic and manual—that eliminate negative pressure. The fire-fighting pressure-stabilizing equipment can reliably activate under any conditions, ensuring an uninterrupted water supply.
    · Equipped with comprehensive protection, self-diagnosis, and fault-detection capabilities, along with corresponding troubleshooting measures; offers a complete suite of protective functions.

  • Stable and Energy-Efficient

    · It fully utilizes the pressure within the municipal water supply network; the system remains idle when the supply pressure meets requirements and automatically activates when the pressure is insufficient.
    · It monitors outlet pressure in real-time via sensors and employs variable-frequency control to maintain a constant output pressure.

  • Convenient management

    · The system operates in a fully automatic or semi-automatic mode and features protections against overload, short circuits, overcurrent, and water shortage, as well as a semi-automatic reset function.
    · It offers a high level of automation and a long service life; the system utilizes fully automatic, intelligent, non-negative pressure CNC control, ensuring ease of operation and microprocessor-based process management.

Detailed Description

Product Description

The ZW(L) series is a complete vertical diaphragm-type pneumatic fire-fighting pressure-boosting and stabilizing system designed for use with “temporary high-pressure” fire water supply systems. It addresses the issue of insufficient static pressure—specifically when the elevation of the rooftop fire water tank is inadequate to meet the static pressure requirements for the most hydraulically remote fire hydrants or sprinkler heads on the top floor. This equipment maintains constant pressure in the piping network and stores a 30-second supply of water for initial fire-fighting operations.

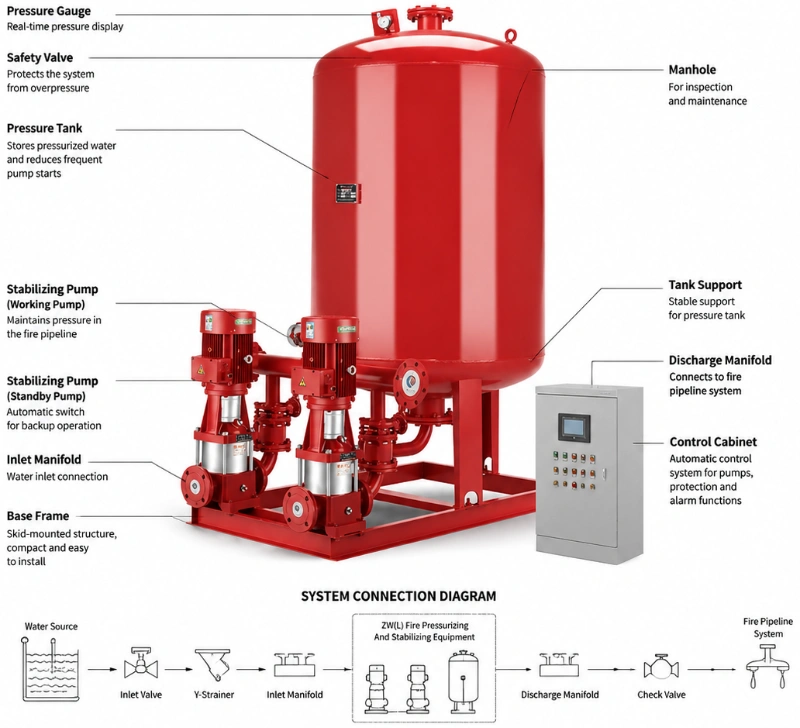

Product Structure Diagram

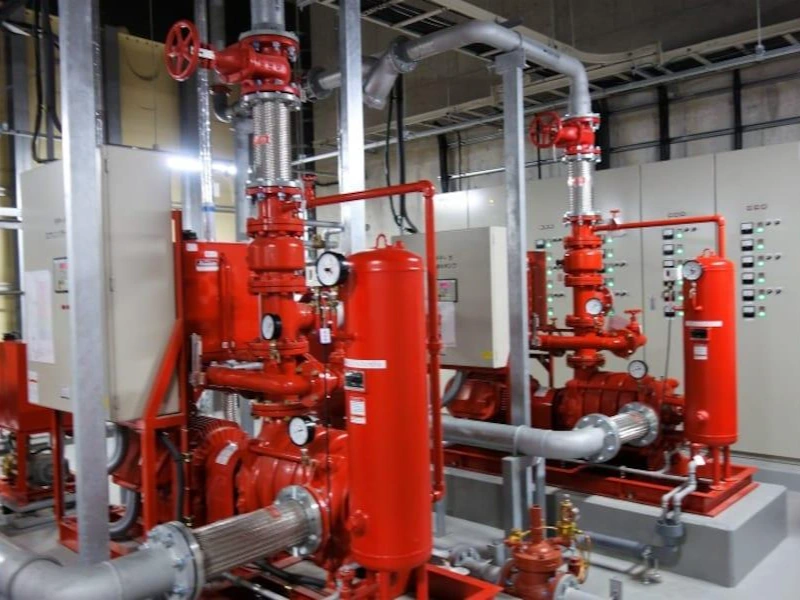

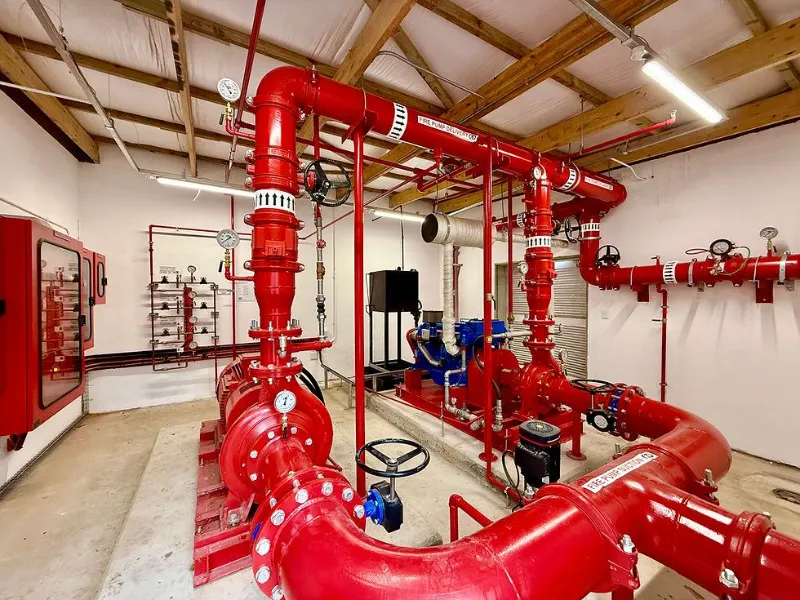

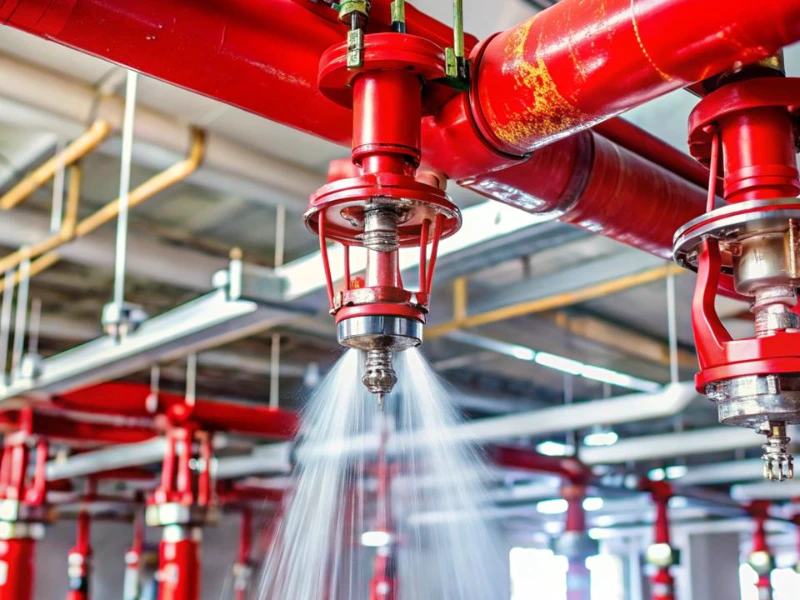

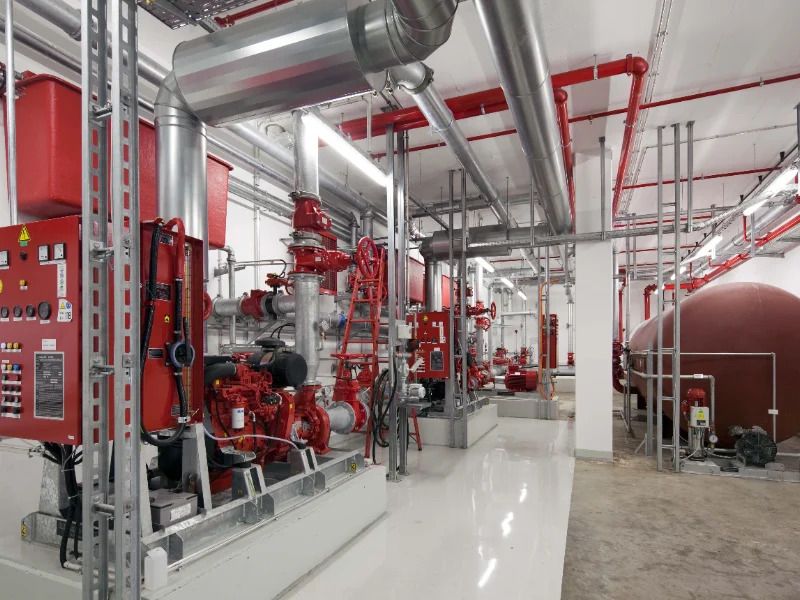

Product Application Areas

FAQs：

  • 1

    What is the function of fire pressurizing and stabilizing equipment?

    It maintains the pressure of the fire protection pipeline during standby conditions and ensures the fire pump system can respond quickly during emergencies.
  • 2

    What is the difference between a stabilizing pump and a main fire pump?

    The stabilizing pump maintains standby pressure with small flow requirements, while the main fire pump provides large water flow during actual firefighting.
  • 3

    Can the equipment voltage be customized?

    Yes. We can provide different voltage options according to different countries and project requirements.
  • 4

    Where is this equipment commonly installed?

    It is usually installed in fire pump rooms of buildings, factories, warehouses, and other fire protection facilities.
