XBC Diesel Engine Fire/Emergency Pump Set

XBC Diesel Fire/Emergency Pump Set

The XBC series diesel engine fire pump unit is designed in accordance with the national standard GB6245-2006, "Fire Pumps: Performance Requirements and Test Methods." This series offers a wide range of head and flow capacities and features reliable starting performance, strong overload capability, a compact structure, ease of maintenance and operation, and a high degree of automation, making it a dependable piece of firefighting equipment.

Flow rate range	5-500L/s
Power range	30-400kW
Head range	0.15-1.6m
Work press	≤1.6MPa

INQUIRE NOW

Product Advantages

Alarm Items

· Automatic alarm and shutdown conditions: loss of speed signal, over/under-speed, low oil pressure, start/stop failure, open/short circuits in sensors (oil pressure, water temperature, etc.), low water pump pressure, etc.
· Pre-alarm conditions: over/under-speed, low oil pressure, high coolant temperature, low ambient temperature, low fuel level, high/low battery voltage, uncalibrated speed signal, low water pump pressure, etc.
Status Mode

· Diesel engine operating status display: Standby, Power-on, Fuel supply, Cranking, Start delay, Idle delay, Normal operation, Cooling shutdown, Emergency shutdown.
· Manual/Automatic/Remote control: Supports manual, automatic, and remote control of water pump start/stop; control modes are switchable.
Parameter Settings

· Diesel engine parameter measurement and display: Engine speed, running time, fuel level, battery voltage, coolant temperature, oil pressure.
· Configurable diesel engine control timings: Start delay, pre-heating or pre-lubrication time, cranking cutoff time, ramp-up time, cooling shutdown time.

Detailed Description

Product Description

The XBC series diesel-driven fire pump unit is a stationary fire-fighting system developed and manufactured by our company in accordance with the national standard GB6245-2006 (Fire Pumps) and with reference to the NFPA 20 standard of the National Fire Protection Association. Designed for situations where a fire occurs and the electric fire pump fails to operate due to a power outage, this unit automatically activates to ensure effective fire suppression and safeguard lives and property. The system features various automatic control functions to guarantee reliable long-term standby readiness and immediate deployment for fire-fighting operations. The unit pairs a high-quality domestic or imported diesel engine with a fire-fighting water pump. It is characterized by rapid starting, reliable priming, ample power reserve, stable operation, a high degree of standardization, and a wide range of pressure and flow capabilities, making it a dependable piece of fire-fighting equipment. This pump unit is also suitable for other emergency backup applications, such as flood control, drainage, and agricultural irrigation.

Performance Parameters

Model	Flow rate (L/s)	Pressure (mPa)	Power (kw)	Rated speed (r/min)
XBC5.5/20G-W	20	0.55	29	2900
XBC10.5/20G-W	20	1.05	72	2900
XBC10.0/25G-W	25	1	72	2900
XBC8.0/30G-W	30	0.8	63	2900
XBC10.0/30G-W	30	1	100	2900
XBC5.2/40G-W	40	0.52	42	2900
XBC7.0/40G-W	40	0.7	76	2900
XBC8.0/40G-W	40	0.8	72	2900
XBC10.0/40G-W	40	1	100	2900
XBC5.7/50G-W	50	0.57	72	2900
XBC6.5/50G-W	50	0.65	72	2900
XBC7.8/50G-W	50	0.78	100	2900
XBC9.0/50G-W	50	0.9	117	2900
XBC6.2/50G-W	60	0.62	72	2900
XBC7.2/50G-W	60	0.72	100	2900

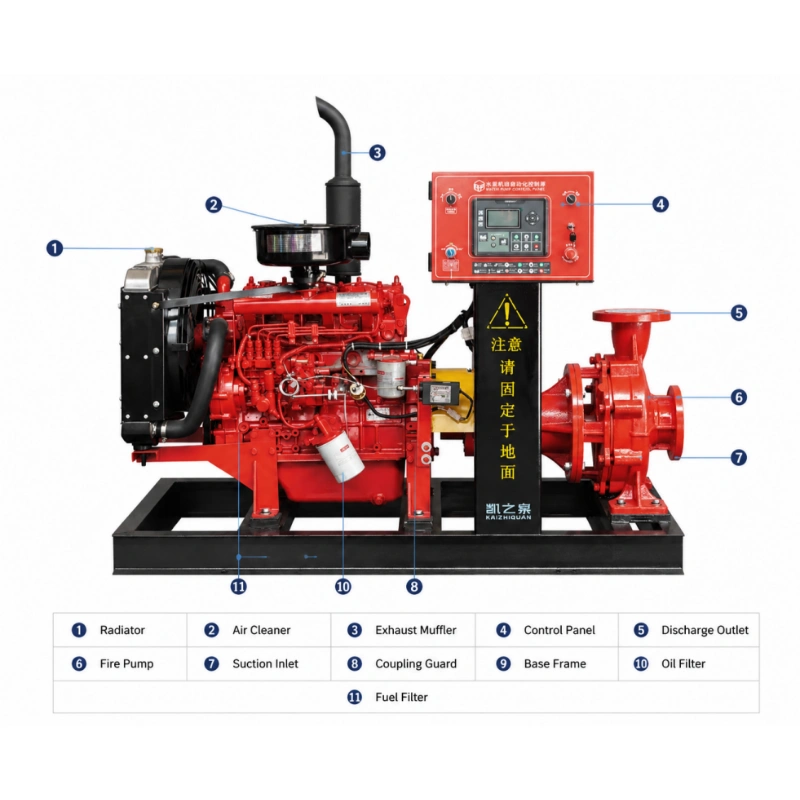

Product Structure Diagram

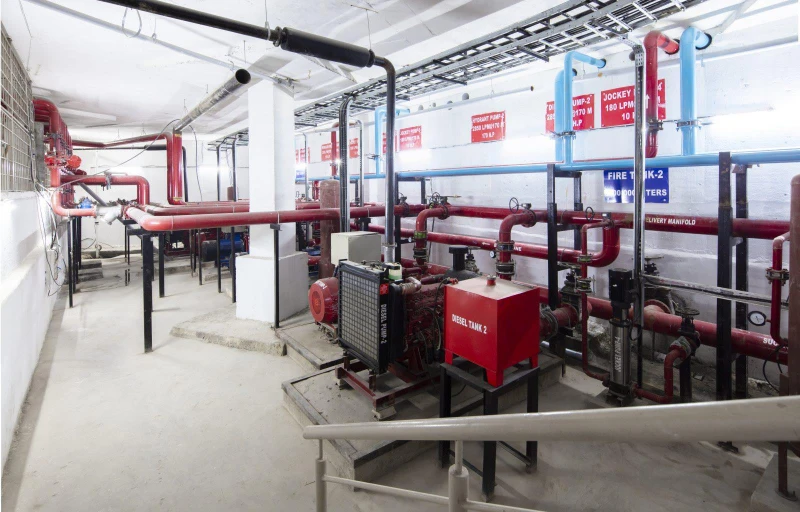

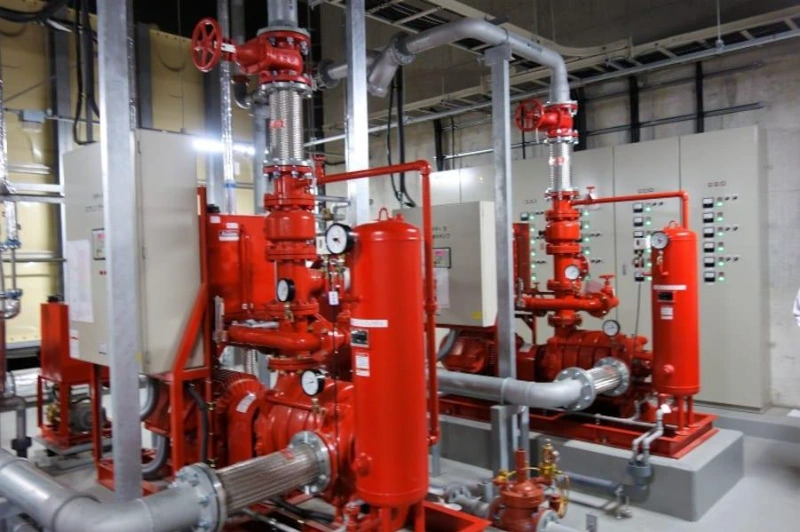

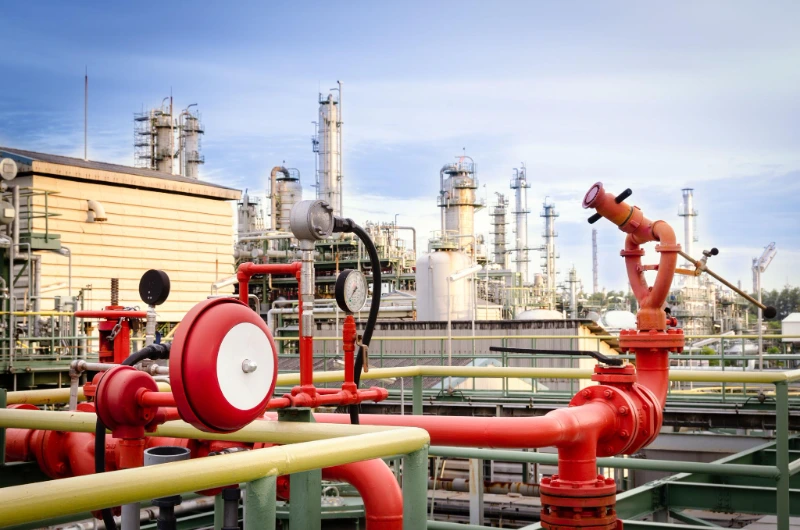

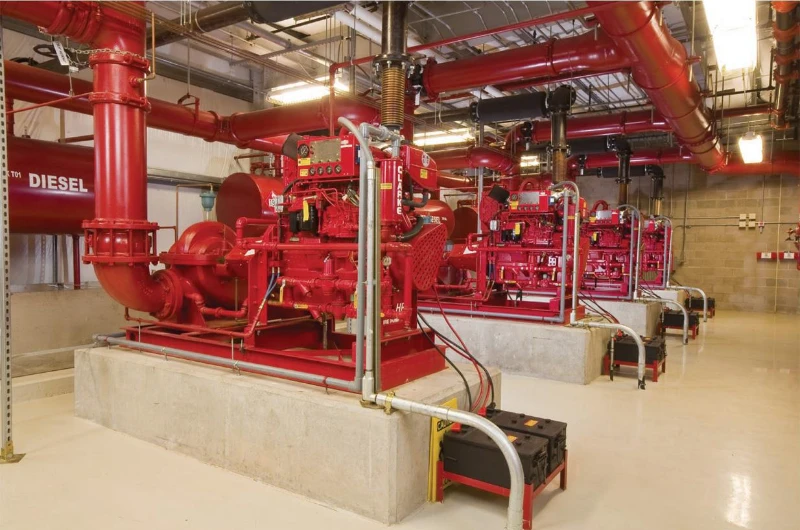

Product Application Areas

FAQs：

1
Why use a diesel fire pump instead of an electric fire pump?

Diesel fire pumps provide an independent power source and can continue working during electrical failures, making them ideal as emergency backup fire protection equipment.
2
Can the XBC diesel fire pump start automatically?

Yes. The automatic control system can receive fire signals or pressure drop signals and start the diesel engine automatically.
3
What information is needed to select the correct model?

Customers should provide: Required flow rate (L/s or m³/h); Required pressure/head (MPa or m); Building/project type; Power supply condition; Installation environment.
4
Can you provide complete fire pump systems?

Yes. We can provide complete solutions including: Diesel fire pump; Electric fire pump; Jockey pump; Control cabinet; Accessories and installation guidance.
